Plans 14' Wide Buildings

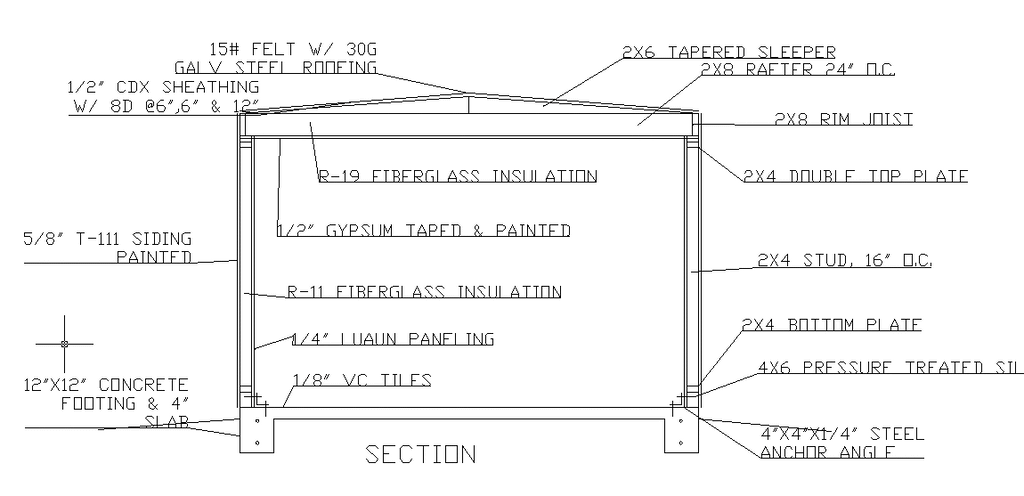

14' wide nominal. 13'6" wide face of frame, unless otherwise noted.  4x6 pressure treated ground contact skids. 2x10 floor joist, 2x4 wall studs, 5/8" premium pine T-111 grooved siding, painted. 2x8 roof rafters, 1/2" plywood roof sheathing, .024" single piece rolled aluminum roofing. Insulation R-11 walls,  R-19 ceiling. 1/2" drywall ceiling, 1/4" Birch wall paneling, 1/8" VC floor tiles. Electrical: metal sheathed cable with #14/#12 copper conductors, 125amp load center/breaker panel. 15 amp receptacles, fluorescent lights with T8 bulbs.

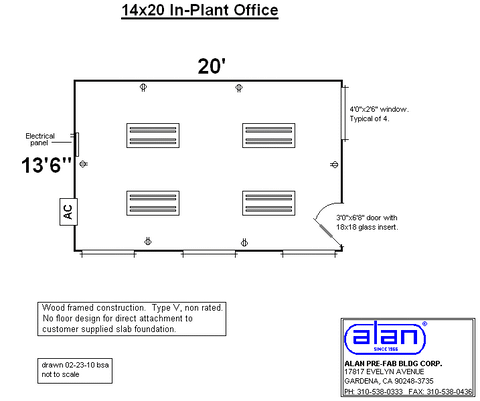

Call 310.538.0333 for quote. 13'6"x20'  no floor office for direct attachment to concrete slab. 1 door 3'x6'8" with lever passage and deadbolt 18"x18" view port, 4 windows 4'x2'6" aluminum sliding, clear glass. OPTIONS: Skidmounted wth floor for portability.  Dual glazed windows. Vinyl wrapped gyspum wallboard. Air conditioner heater.

Email Form for Quote

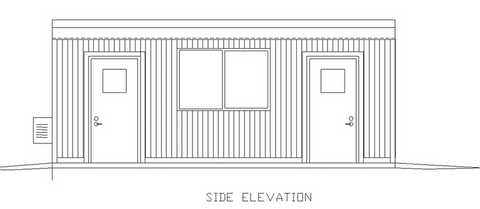

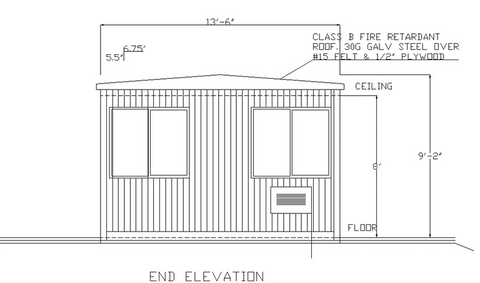

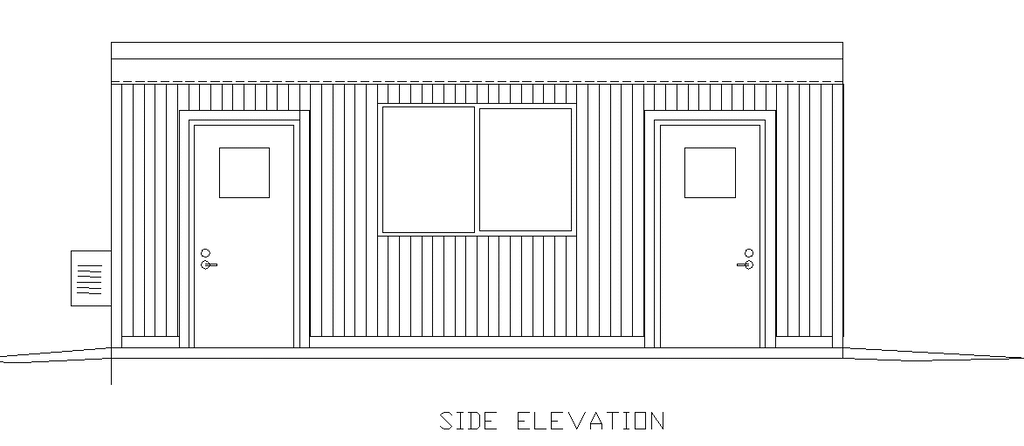

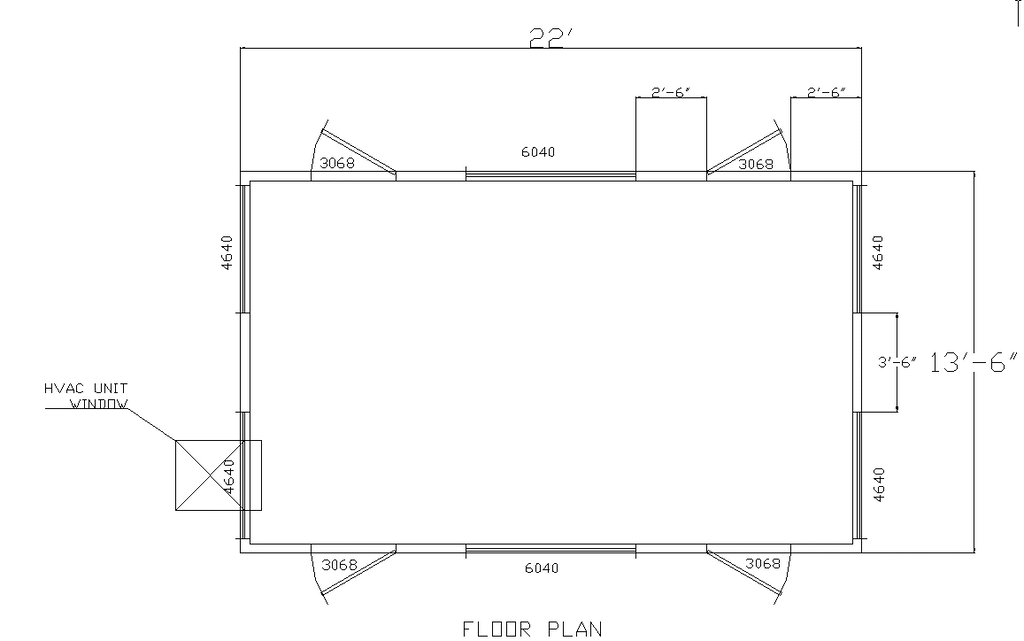

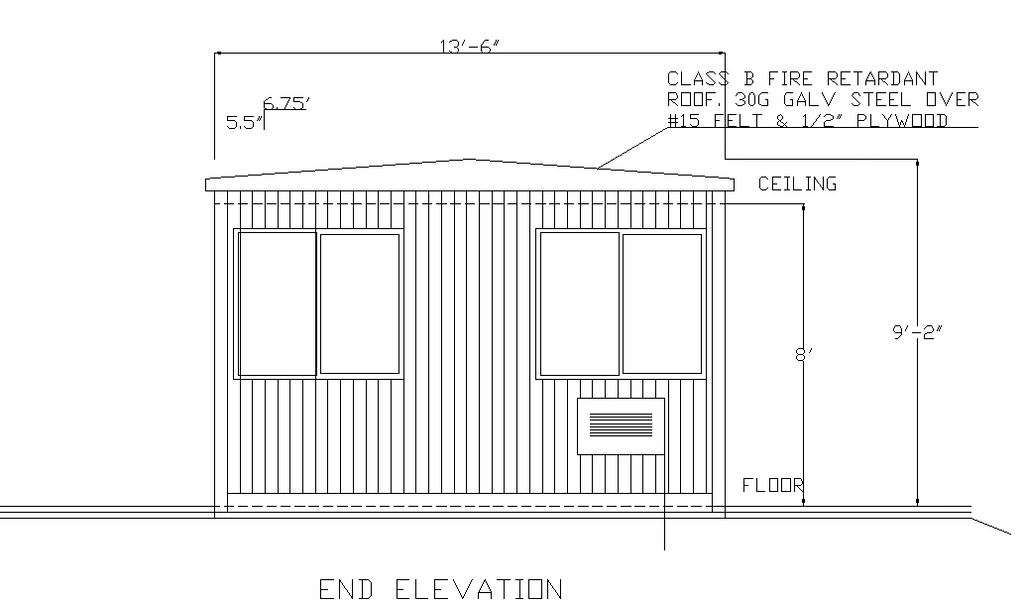

Call 310.538.0333 for quote. 13'6"x22' no floor  permanent office for direct attachment to conrete slab. 4 door 3'x6'8" with lever passage and deadbolt 18"x18" view port, 2 windows 6'x4' aluminum sliding, clear glass.    4 windows 4'6"x4' aluminum sliding, clear glass.OPTIONS: Skidmounted floor for portability.  Dual glazed windows. Vinyl wrapped gyspum wallboard. Air conditioner heater.

Email Form for Quote

Call 310.538.0333 for quote. 13'6"x36' skid mounted  portable office. 2 door 3'x6'8" with lever passage and deadbolt 18"x18" view port, 2 windows 4'x2'6" aluminum sliding, clear glass.  OPTIONS: No floor style for direct attachment to concrete slab.  Dual glazed windows. Vinyl wrapped gyspum wallboard. Air conditioner heater.

Email Form for Quote

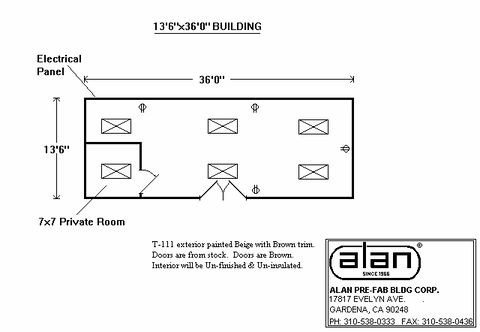

Call 310.538.0333 for quote. 13'6"x36' skid mounted  portable office. 1 door 6'x6'8" with lever passage and deadbolt 18"x18" view port, 0 windows 3'x2'6" aluminum sliding, clear glass. 7'x7' private room with 3'x6'8" solid core door and double cylinder deadbolt.    OPTIONS: No floor style for direct attachment to concrete slab.  Dual glazed windows. Vinyl wrapped gyspum wallboard. Air conditioner heater.

Email Form for Quote

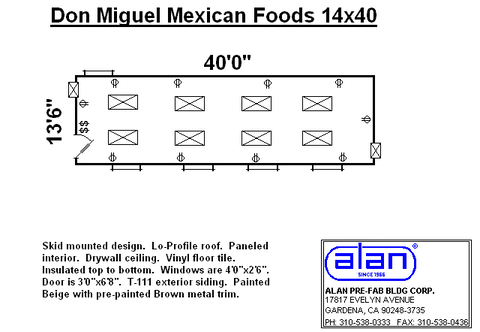

Call 310.538.0333 for quote. 13'6"x40' skid mounted  portable office. 1 door 6'x6'8" with lever passage and deadbolt 18"x18" view port, 5 windows 3'x2'6" aluminum sliding, clear glass. OPTIONS: No floor style for direct attachment to concrete slab.  Dual glazed windows. Vinyl wrapped gyspum wallboard. Air conditioner heater.
