Plans 16' Wide & More Buildings

Buildings wider than 14' are built in sections and connected together at the site to create a larger structure. Many of these buildings are built without a floor and use a concrete slab as a floor.   With a floor, they have:  4x6 pressure treated ground contact skids. 2x8 floor joist, 2x4 wall studs, 5/8" premium pine T-111 grooved siding, painted. 2x6 roof rafters, 1/2" plywood roof sheathing, .024" single piece rolled aluminum roofing. Insulation R-11 walls,  R-19 ceiling. 1/2" drywall ceiling, 1/4" Birch wall paneling, 1/8" VC floor tiles. Electrical: metal sheathed cable with #14/#12 copper conductors, 125amp load center/breaker panel. 15 amp receptacles, fluorescent lights with T8 bulbs.

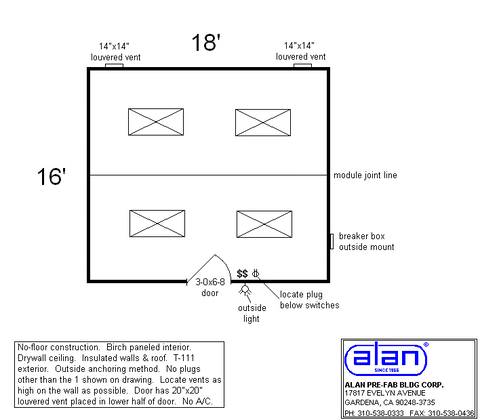

Call 310.538.0333 for quote. 16'x18'  no floor office for direct attachment to concrete slab. 1 door 3'x6'8" with lever passage and deadbolt. 2each 12" diameter exhaust fans. OPTIONS:  Skidmounted wth floor for portability.  Dual glazed windows. Vinyl wrapped gyspum wallboard. Air conditioner heater.

Email Form for Quote

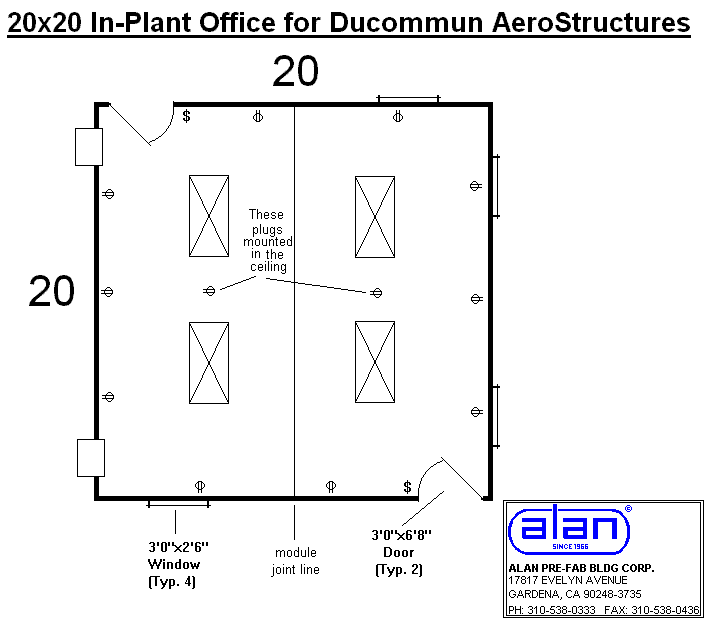

Call 310.538.0333 for quote. 20'x20' no floor  permanent office for direct attachment to conrete slab. 2 doors 3'x6'8" with lever passage and deadbolt 18"x18" view port, 2 windows 3'x2'6 aluminum sliding, clear glass.    OPTIONS: Skidmounted floor for portability.  Dual glazed windows. Vinyl wrapped gyspum wallboard. Air conditioner heater.

Email Form for Quote

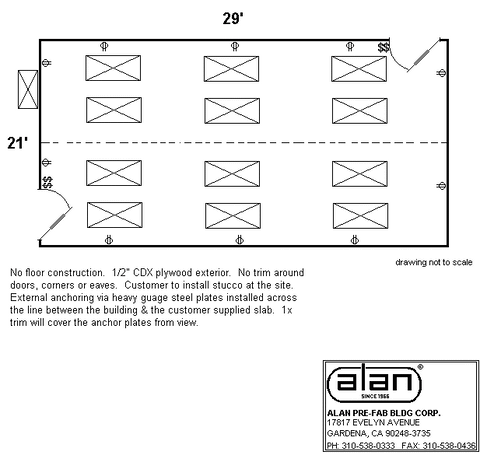

Call 310.538.0333 for quote. 21'x29' no floor locker room for direct attachment to concrete slab. 1 door 3'x6'8" with lever passage and deadbolt  OPTIONS: Skidmounted with flooor. Exhaust fans.  Dual glazed windows. Vinyl wrapped gyspum wallboard. Air conditioner heater.

Email Form for Quote

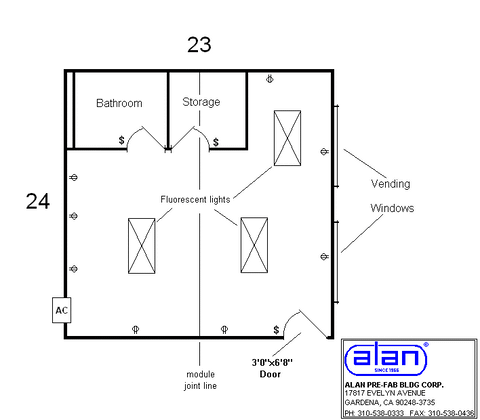

Call 310.538.0333 for quote. 23'x24'' skid mounted  portable office. 1 door 6'x6'8" with lever passage and deadbolt 18"x18" view port, 2 windows 5'x2'6" aluminum sliding, clear glass. 7'x7' storage room with 3'x6'8" solid core door and deadbolt. Single occupancy ADA restroom with toilet & lavatory    OPTIONS: No floor style for direct attachment to concrete slab.  Dual glazed windows. Vinyl wrapped gyspum wallboard. Air conditioner heater.

Email Form for Quote

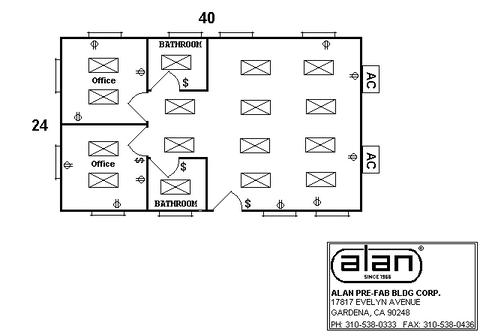

Call 310.538.0333 for quote. 24'x40' skid mounted  portable office. 1 door 6'x6'8" with lever passage and deadbolt 18"x18" view port, 10 windows 4'x2'6" aluminum sliding, clear glass. 2 each private offices with insulated partitions. 2 each single occupancy ADA restrooms with toilet & lavatory. OPTIONS: No floor style for direct attachment to concrete slab.  Dual glazed windows. Vinyl wrapped gyspum wallboard. Air conditioner heater.

Email Form for Quote
