Plans 10' Wide Buildings
Alan 10' wide Skidmounted Office standard features
4x6 pressure treated ground contact skids. 2x6 floor joist, 2x4 wall studs, 5/8" premium pine T-111 grooved siding, painted. 2x6 roof rafters, 1/2" plywood roof sheathing, .024" single piece rolled aluminum roofing. Insulation R-11 walls, R-19 ceiling. 1/2" drywall ceiling, 1/4" Birch wall paneling, 1/8" VC floor tiles. Electrical: metal sheathed cable with #14/#12 copper conductors, 125amp load center/breaker panel. 15 amp receptacles, fluorescent lights with T8 bulbs.

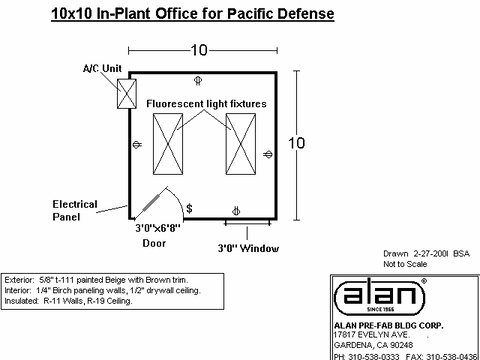

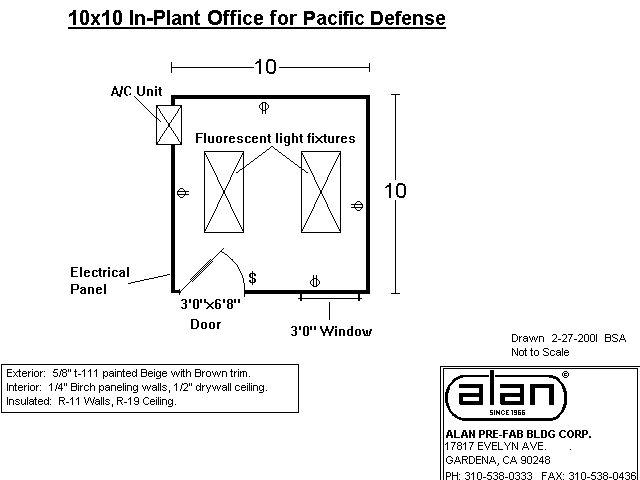

Alan 10'x10' Skidmounted Office Custom
Call 310.538.0333 for quote. 10'x10' skid mounted In Plant Office. 1 door 3'x6'8" with lever passage and deadbolt, 1 window 3'x2'6" sliding. OPTIONS: No floor style for direct attachment to concrete slab. 12" roof overhang. Dual glazed windows. Vinyl wrapped gyspum wallboard. Air conditioner heater
Email Form for Quote

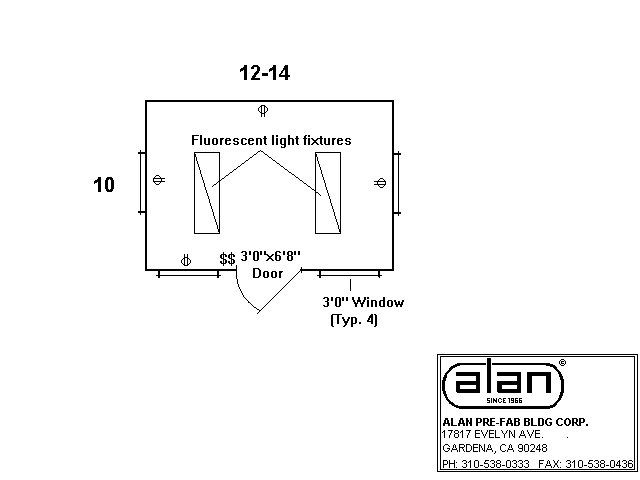

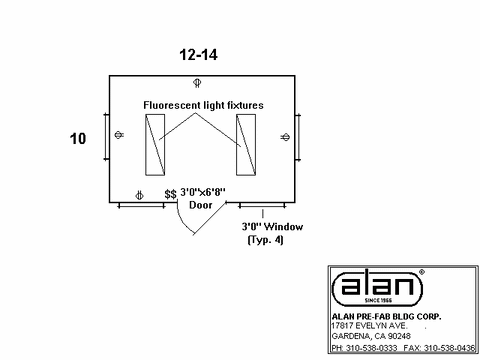

Alan 10'x12' or 14' Skidmounted Office Custom
Call 310.538.0333 for quote. 10'x12' or 14' skid mounted portable office. 1 door 3'x6'8" with lever passage and deadbolt, 4 window 3'x2'6" sliding. OPTIONS: No floor style for direct attachment to concrete slab. 12" roof overhang. Dual glazed windows. Vinyl wrapped gyspum wallboard. Air conditioner heater
Email Form for Quote

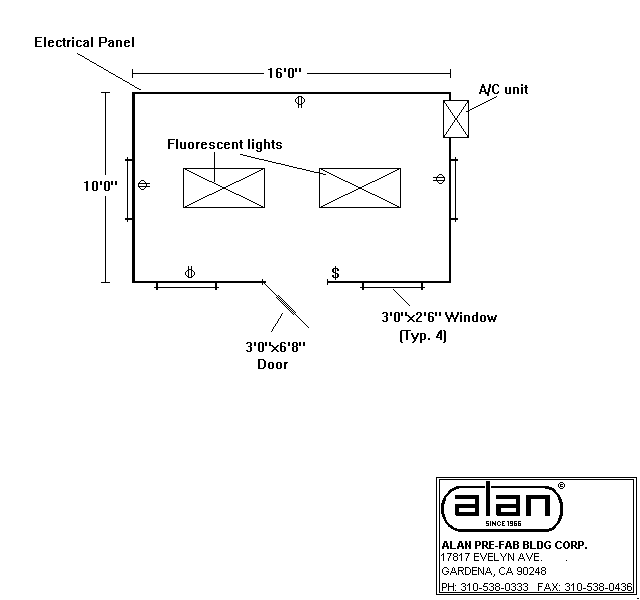

Alan 10'x16' Skidmounted Office Custom
Call 310.538.0333 for quote. 10'x16' skid mounted portable office. 1 door 3'x6'8" with lever passage and deadbolt, 4 window 3'x2'6" sliding. OPTIONS: No floor style for direct attachment to concrete slab. 12" roof overhang. Dual glazed windows. Vinyl wrapped gyspum wallboard. Air conditioner heater
Email Form for Quote

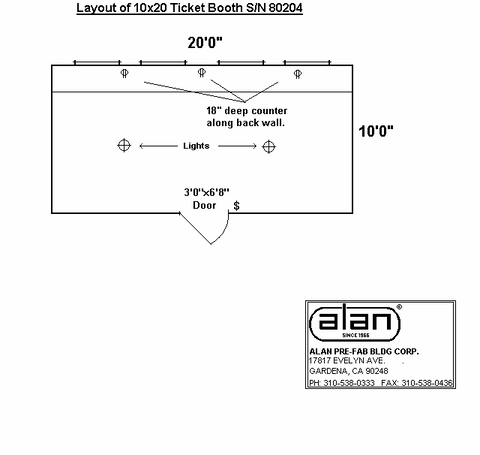

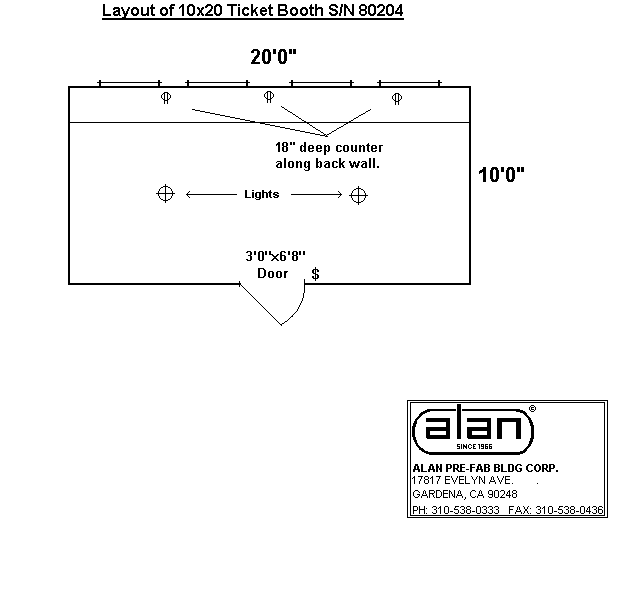

Alan 10'x20' Skidmounted Ticket Booth Custom
Call 310.538.0333 for quote. 10'x20' skid mounted portable ticket booth. 1 door 3'x6'8" with lever passage and deadbolt, 4 window 3'x2'6" sliding. 24" deep counter along 20' wall (inside) OPTIONS: No floor style for direct attachment to concrete slab. 12" roof overhang. Dual glazed windows. Vinyl wrapped gyspum wallboard. Air conditioner heater
Email Form for Quote

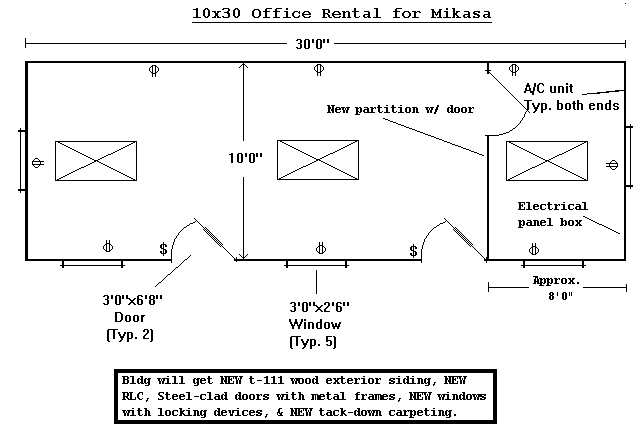

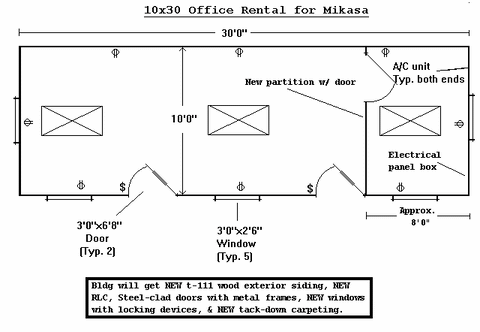

Alan 10'x30' Skidmounted Office Custom
Call 310.538.0333 for quote. 10'x30' skid mounted portable office. 2 door 3'x6'8" with lever passage and deadbolt, 5 windows 3'x2'6" sliding. 10' partition for private office. OPTIONS: No floor style for direct attachment to concrete slab. 12" roof overhang. Dual glazed windows. Vinyl wrapped gyspum wallboard. Air conditioner heater.
Email Form for Quote

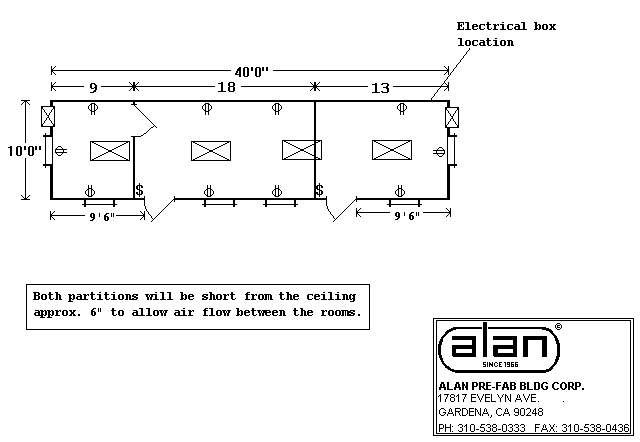

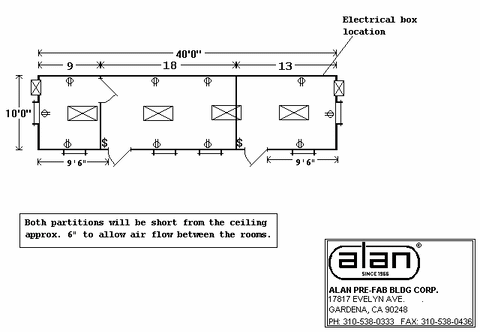

Alan 10'x40' Skidmounted Office Custom
Call 310.538.0333 for quote. 10'x30' skid mounted portable office. 2 door 3'x6'8" with lever passage and deadbolt, 6 windows 3'x2'6" sliding. 2 each 10' partitions for private offices, cut low for air flow. OPTIONS: No floor style for direct attachment to concrete slab. 12" roof overhang. Dual glazed windows. Vinyl wrapped gyspum wallboard. Air conditioner heater.
Email Form for Quote
